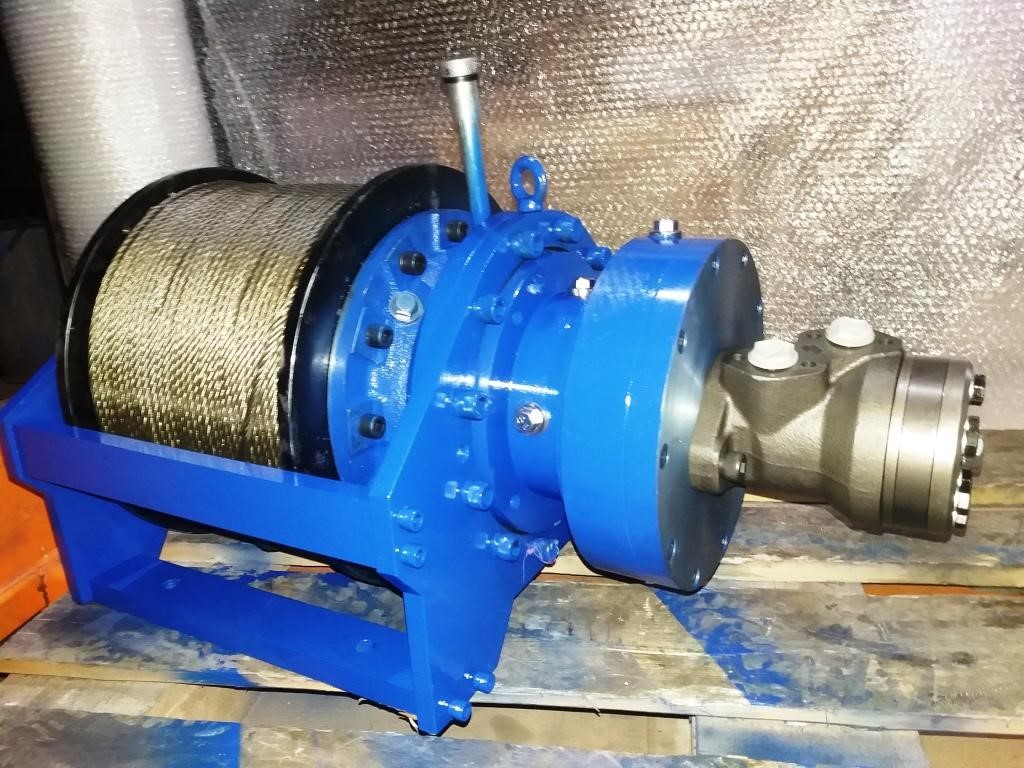

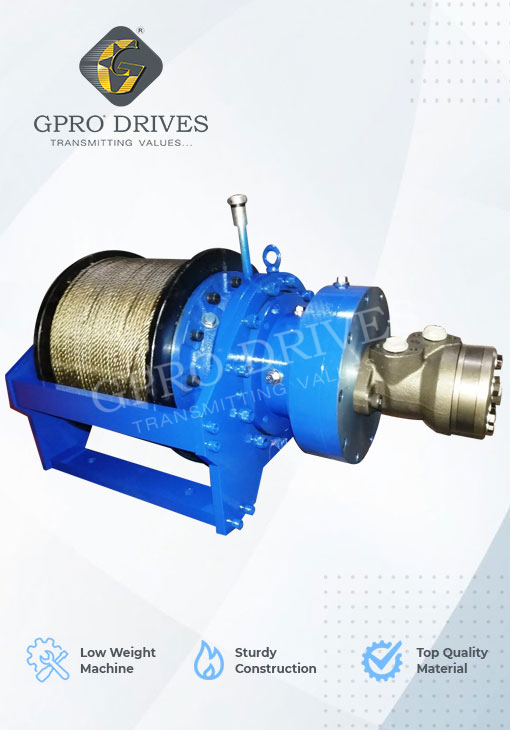

Hydraulic Winch

You're in: Products » Hydraulic Winch

Leading Hydraulic Winch Manufacturers In India

Backed by skilled and laborious professionals, our company expertise in manufacturing hydraulic winches.

These winches are inbuilt with disk brake, manual clutch option, and various others.

Fused with high capacity and immaculate design, these winches are quite a favorite among our treasured customers.

They are widely used in various applications such as mobile cranes, drilling rigs, offshore cranes, stackers, material handling, and so on.

Further, these winches are accurately designed with much precise results.

Features of these Hydraulic Winch

Let us have a look at some of the product specifications and features of these Hydraulic Winch:

  • Easy to install and operate
  • Open design facilitating easy maintenance
  • Possess a step less speed control
  • Possess a powerful display that shows load, speed and pulling length
  • Possesses an auto cut off feature when set to designated speed/ load
  • Suitable for rough conditions owing to robust design
  • Further loaded with mechanical anchors

We Give Best Business Solution

It we caters to the needs of our clients by manufacturing, exporting and supplying the various equipment’s such as Planetary Gearboxes, Hydraulic Winch, Screw Jack, Bevel Drives, Worm Drives, and etc.

× Technical Specifications Of Hydraulic Winch

TypePlanetary Winch
MountingFoot
Input
  • A. Hollow to suite Hydraulic Motor
Orientation
  • B1 (Base Mounted)
  • W1 (Wall Mounted)
  • C1 (Ceiling Mounted)
Type of OperationLifting, Pulling
Ambient Temp.40 Deg. C
Allowable Temperature Rise45 Deg. C above ambient temp.
Capacity RangeFrom 50 Kg To 50,000 Kg
Speed RangeFrom 10 m/min To 60 m/min
Wire Rope ODFrom Ø6 mm to Ø40mm
Wire Rope Length From 10m to 1000m
No of wire rope falls
  • 1 to 4
Wire Rope Construction
  • Steel Core, Fibre Core
Drum
  • Single Grooved Drum, Double Grooved Drum
Brake
  • Brakeing through Multidisc Clutch Brake Arrangement
Wire Rope Type
  • Galvanised, Ungalvanised
System Pressure Requirement
  • From 100 Bar
  • To 250 Bar
System Flow Requirement
  • From 20 lpm
  • To 150 lpm
Max. Input Speed
  • 1000 rpm (For Higher / Lower Speed Consult GPRO)
Paint Shade
  • STD : RAL Blue
  • SPL : Special color can be provided against specific customer requirement
Method of Cooling
  • STD : Splash Type Lubrication air cooled
Lubrication
  • ISO VG 220/320 Synthetic Base Oil
  • STD : Winch supplied without oil
  • SPL : Winch supplied with oil against specific customer requirement
Standard AccessoriesNill
Applicable StandardsAGAM , ISO, IS
AdvantageHigh Efficiency, Inline, High Torque Density, High Torque to weight ratio
DisadvantageNil
ApplicationMaterial handling, Chemical, Sugar, Cement,Paper, Rubber, Marine, Food Industry, Automation, Oil & Gas, Textile and much more
