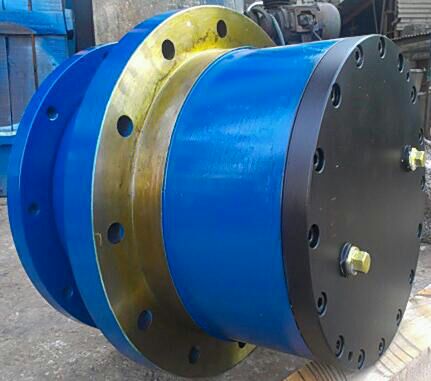

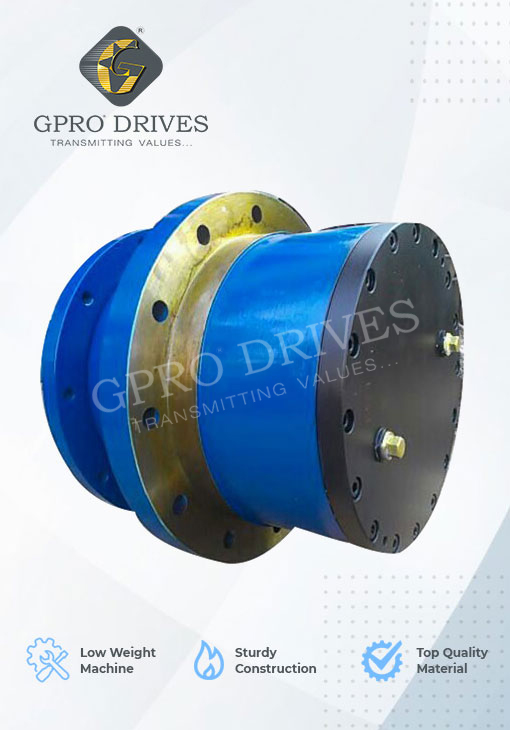

Track Drive

You're in: Products » Track Drive

Leading Track Drive Manufacturers In India

Our company provides its customers a wide and explicit range of track drives that is very hard to find these days.

We understand the needs of our customers, which is why we are inclined towards offering them track drives with unparalleled performance.

They find extensive use in excavators and agricultural equipment, owing to their durability and versatility.

They are further used in crawler applications for any mobile equipments such as cranes, drilling rigs, etc.

Features of these Track Drive

Let us have a look at some of the product specifications and features of these Track Drive:

  • Resistant to corrosion
  • Compactly designed and dimensionally correct
  • Highly durable with a long lasting functional life.
  • Torque capacity is around 300Nm to 250000 Nm
  • Ratio is around 5:1 to 300:1
  • Support a radial load of the range: 10000 N to 500000 N
  • Possess a Hydraulic track drive with a hydraulic parking brake.
  • Transmission construction they possess is single, double or triples stage compact planetary system

We Give Best Business Solution

It we caters to the needs of our clients by manufacturing, exporting and supplying the various equipment’s such as Planetary Gearboxes, Hydraulic Winch, Screw Jack, Bevel Drives, Worm Drives, and etc.

× Technical Specifications Of Track Drive

TypePlanetary
MountingBody
Input
  • Hollow to suite Hydraulic Motor
Orientation
  • B3 (Horizontal)
Efficiency96% per stage
Ambient Temp.40 Deg. C
Allowable Temperature Rise
45 Deg. C above ambient temp.
Ratio Range3.75 to 140
Output Torque RangeFrom 150 Kg.m To 550 Kg.m
Input Motor
Cartridge Axial Piston Hydraulic Motor, Flanged Axial Piston Hydraulic Motor, Hydraulic Orbit Motor
Max. Input Speed As per motor
Paint Shade
  • STD : STD : RAL Blue + Black, Black
  • SPL : Special color can be provided against specific customer requirement
Method of Cooling
  • STD : Splash Type Lubrication air cooled
Lubrication
  • ISO VG 220/320 Synthetic Base Oil
  • STD : Gearbox supplied without oil
  • SPL : Gearbox supplied with oil against specific customer requirement
Standard AccessoriesCan be provided with splined Bolt for Sprocket Mounting, Supplied with Hydraulic released Parking Brakes
Applicable StandardsAGAM , ISO, IS
AdvantageVery Rugged design for heavy duty application
DisadvantageNil
ApplicationCrawller, Pocklen, Road Construction Machinery
