Leading Planetary Gearbox Manufacturers In India
Our company is quite a name in manufacturing planetary gearbox for satisfying the requirements of our customers.
They find extensive use in industrial applications operated by electric and hydraulic motors.
We bestow our customers with superlative quality, cost-effective, power-saving planetary gearboxes serving their objectives.These planetary reduction gearboxes comprise internally toothed ring gears, planets mounted on planet carrier, and the sun gear.
The reduced output speed is measured from the planet carrier.
The output shaft has the same direction as the input.
These gearboxes, owing to their exclusiveness are widely used in plants such as steel and sugar plants.
Different Models Of Planetary Gearbox
The products we offer are durable with a long lasting functional life. The quality of raw materials we use for manufacturing these products are par excellence, ensuring products with optimum quality.

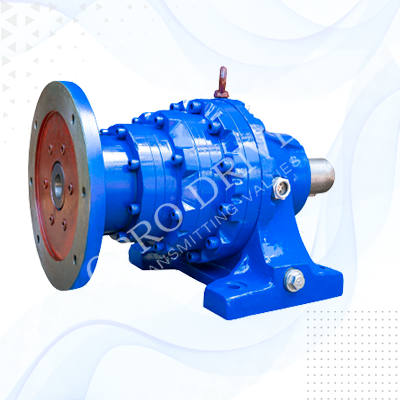

1. Mounting - Foot
Input: Hollow, Orientation : B3
2. Mounting - Foot

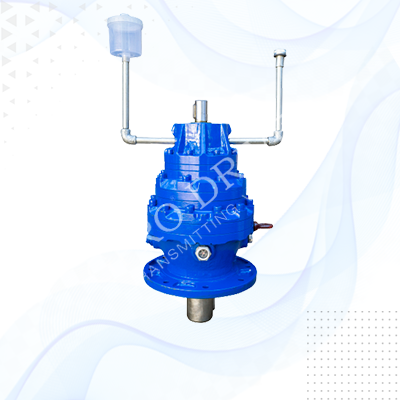

Input: Hollow, Orientation : V5
3. Mounting - Foot

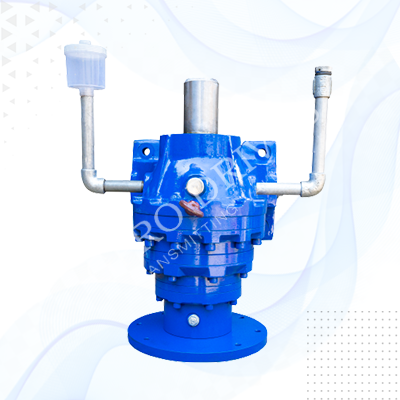

Input: Hollow, Orientation : V6

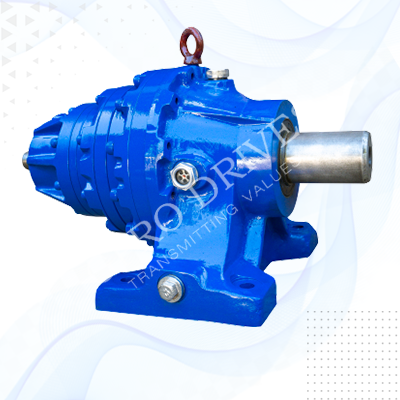

4. Mounting - Foot
Input: Solid Shaft, Orientation : B3
5. Mounting - Foot
Input: Solid Shaft, Orientation : V5
6. Mounting - Foot
Input: Solid Shaft, Orientation : V6

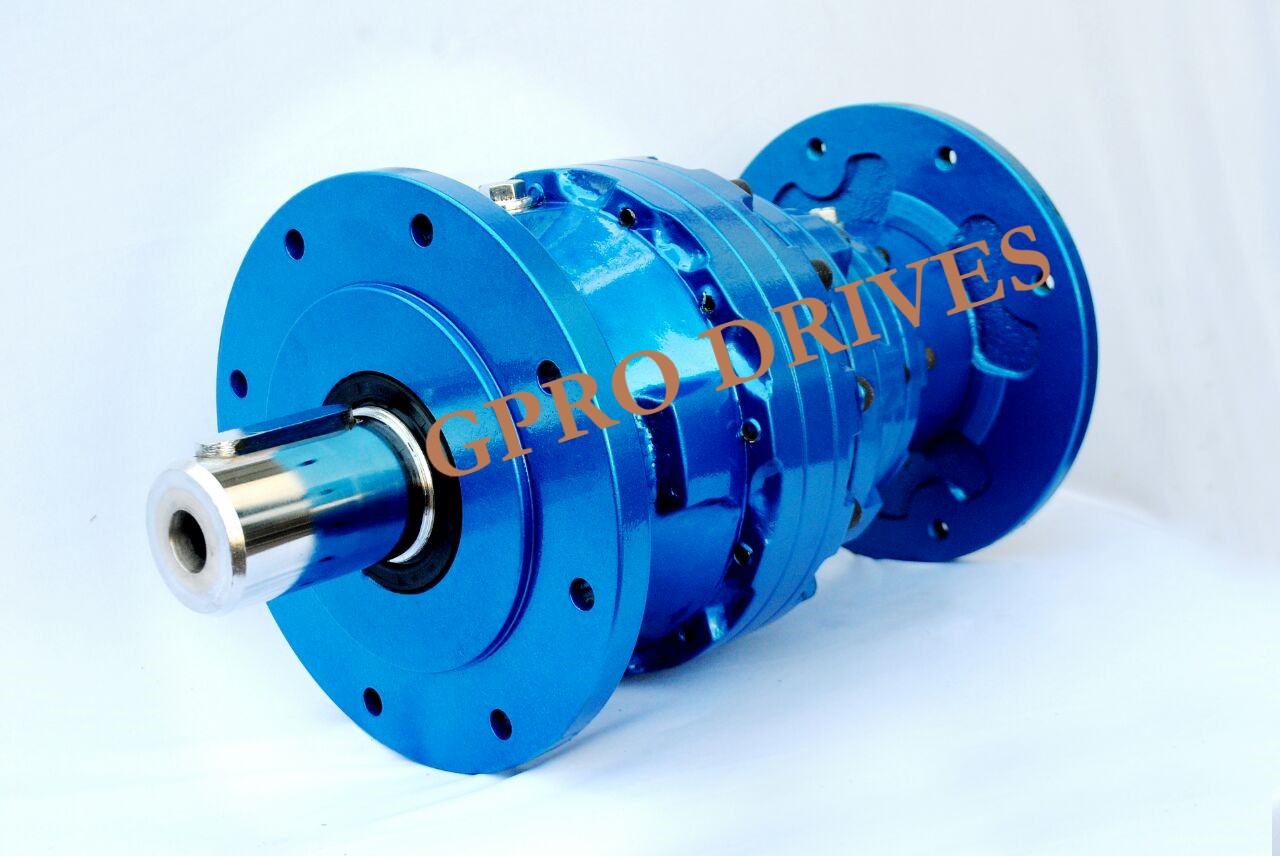

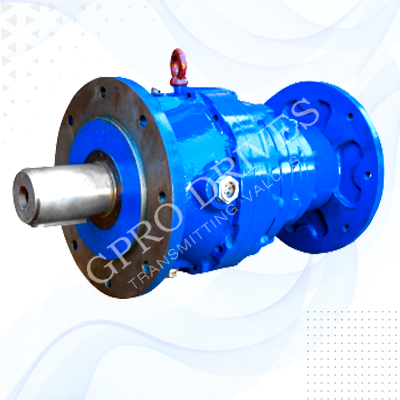

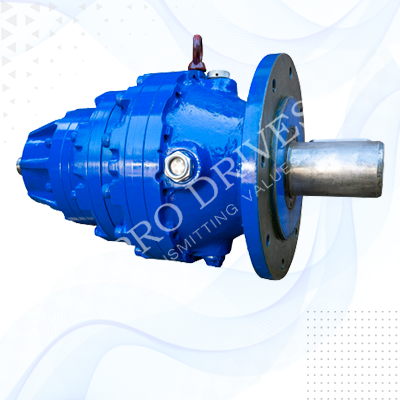

7. Mounting - Flange
Input: Hollow, Orientation : B3
8. Mounting - Flange

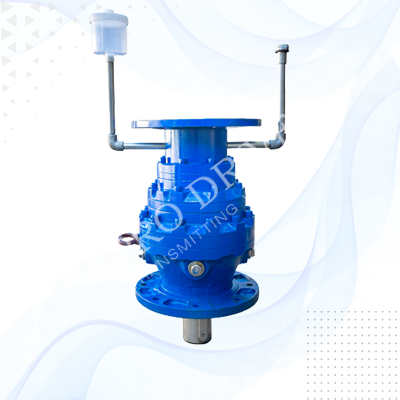

Input: Hollow, Orientation : V5
9. Mounting - Flange
Input: Hollow, Orientation : V6
10. Mounting - Flange
Input: Solid Shaft, Orientation : B3
11. Mounting - Flange
Input: Solid Shaft, Orientation : V5
12. Mounting - Flange
Input: Solid Shaft, Orientation : V6
Features of these Planetary Gearboxes
Let us have a look at some of the product specifications and features of these planetary gearboxes:
- High reduction ratios
- Possess of a high efficiency and longer lasting life
- Low power consumption & higher overload capacity
- Designed very compactly, and thus are space saving
- Robustly constructed & dimensionally very accurate
- Lack in any self-locking property
- Sturdy and highly durable
- Need low maintenance
We Give Best Business Solution
It we caters to the needs of our clients by manufacturing, exporting and supplying the various equipment’s such as Planetary Gearboxes, Hydraulic Winch, Screw Jack, Bevel Drives, Worm Drives, and etc.
× Technical Specifications Of Planetary Gearboxes
| Type | Planetary |
| Mounting | Foot / Flange/ Agitator |
| Input |
|
| Orientation |
|
| Efficiency | 96% per stage |
| Ambient Temp. | 40 Deg. C |
| Allowable Temperature Rise | 45 Deg. C above ambient temp. |
| Ratio Range | From 3.63:1 Upto customer requirement |
| Output Torque Range | From 12 Kg.m To 60,000 Kg.m |
| Input Power | From 0.16 Hp/0.12kW To 500 Hp/375kW |
| Max. Input Speed | 1440 rpm (For Higher / Lower Speed Consult GPRO) |
| Paint Shade |
|
| Method of Cooling |
|
| Lubrication |
|
| Standard Accessories | For Orientation V5 & V6 Oil Cup Assembly will be provided |
| Applicable Standards | AGAM , ISO, IS |
| Advantage | High Efficiency, Inline, High Torque Density, High Torque to weight ratio |
| Disadvantage | Noise level in some case will be upto 70dB |
| Application | Material handling, Chemical, Sugar, Cement,Paper, Rubber, Marine, Food Industry, Automation, Oil & Gas, Textile and much more |
